RKP-53 Ch= REP-1
Tele King
- Country
- United States of America (USA)
- Manufacturer / Brand
- Tele King
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63168

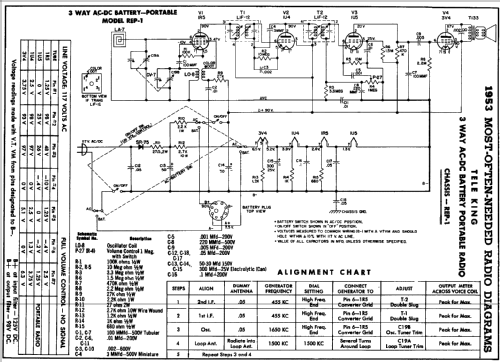

Beitman

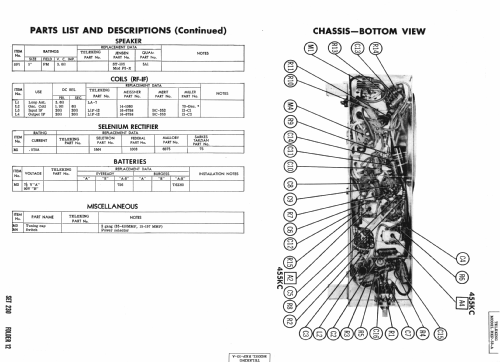

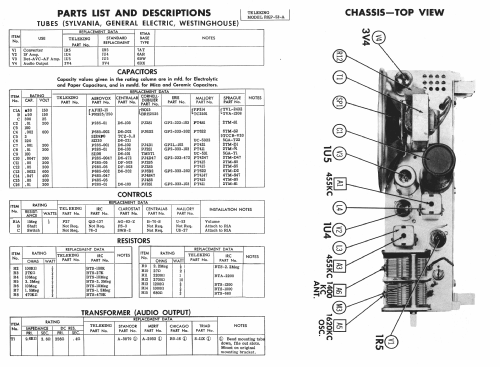

Source Sams Photofact
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 117 AC/DC; (90; 7,5;) Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: RKP-53 Ch= REP-1 - Tele King

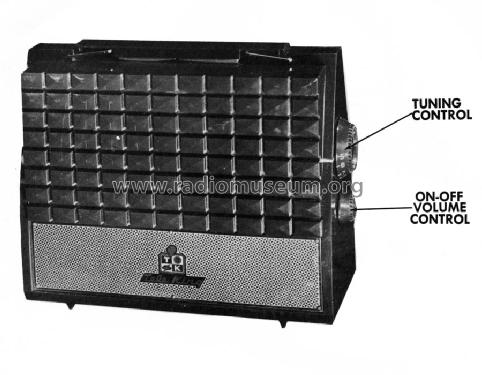

- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Selenium Rectifier
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 13, 1953
- Mentioned in
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 23 (last) = covering up to 1954
