• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1946 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261643

• • alternative name: Teletone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

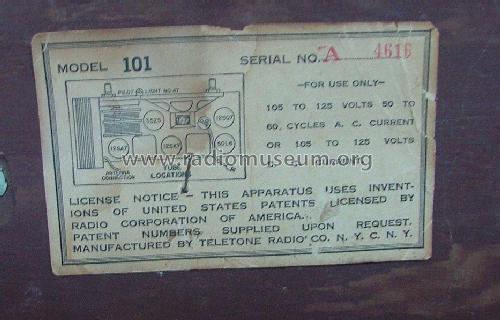

• 12SA7 12SK7 12SQ7 35Z5 50L6

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

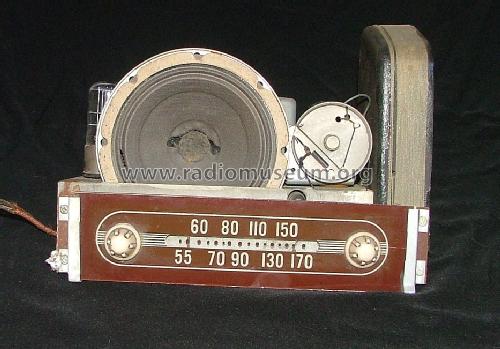

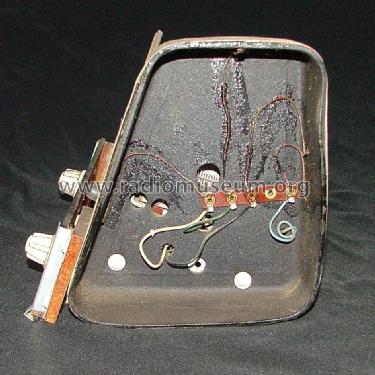

• Model: 101 Ch= A early - Tele-Tone Radio Corp., Tele-

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

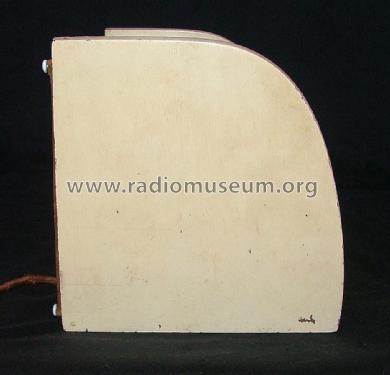

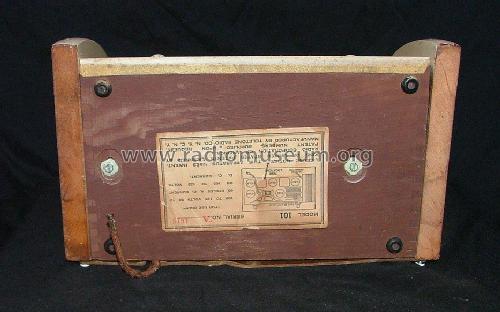

• The sides are painted wood, but the top and front have a thin cloth covering similar to a painting canvas which has been glued to the wood and painted.



• Literature/Schematics (1)
• Rider's Perpetual, Volume 15 = 1947 and before

• Author
• Model page created by Marcella Brodsky. See "Data change" for further contributors.
