• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63196

• • alternative name: Teletone

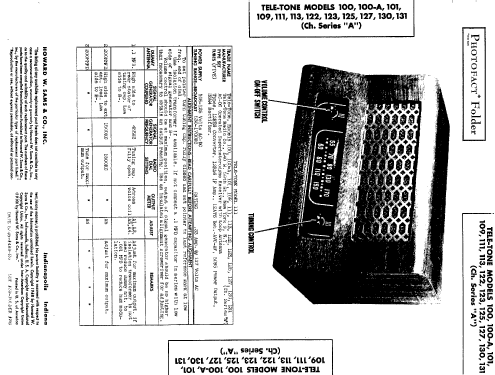

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.63 cm = 1.8 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 109 Ch= A late - Tele-Tone Radio Corp., Tele-

• Shape
• Tablemodel, low profile (big size).

• Notes
• Also with tubes: 12BE6, 12BA6, 12AT6, 50B5, 35W4.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Dat 5-48, set 39, folder 489-26)

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 298.)
