- Country
- United States of America (USA)
- Manufacturer / Brand
- Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
- Year
- 1946–1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 135274
-
- alternative name: Teletone

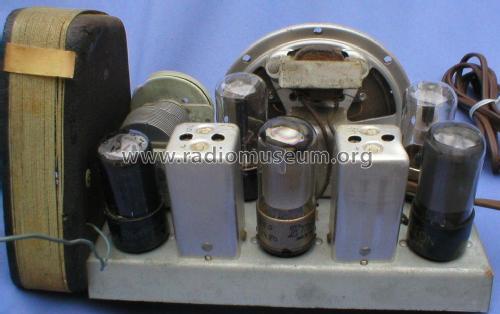

Cabinet is in pieces.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org

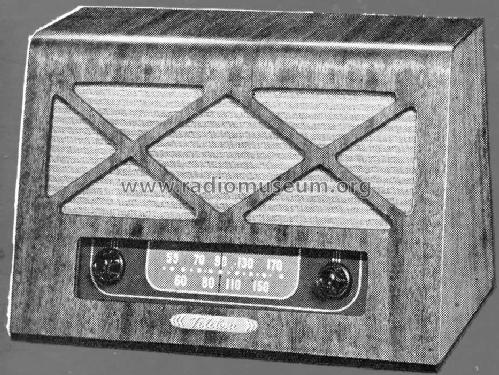

- Model: 131 Ch= A - Tele-Tone Radio Corp., Tele-
- Shape
- Tablemodel, with any shape - general.
- Mentioned in
- Radio Retailing (Radio & Television R.) (July 1946 page 51.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Dat 5-48, set 39, folder 489-26)
- Literature/Schematics (2)
- Machine Age to Jet Age II (page 298.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
