• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 345984

• • alternative name: Teletone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 6J6 or 12AT7 6AG5 6J6 6AG5 6AG5 6AG5 6BC5 or 6CB6 6AG5 6BN6 or 6AL5 25L6GT 12SN7GT 12SN7GT 25L6GT 12SN7GT 6BQ6GT or 25BQ6GT 25W4GT 1B3GT or 1X2GT 17RP4A or 16RP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV335 Ch= TAP - Tele-Tone Radio Corp., Tele-

• Shape
• Tablemodel, with any shape - general.

• Notes

• Tele-Tone model TV335 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis TAP, VHF tuner TAS 551-D or TAS 540 .



• Literature/Schematics (1)

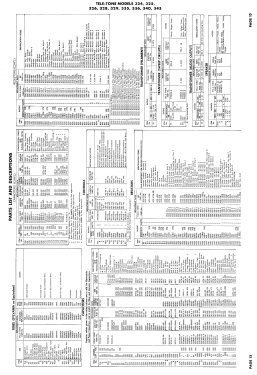

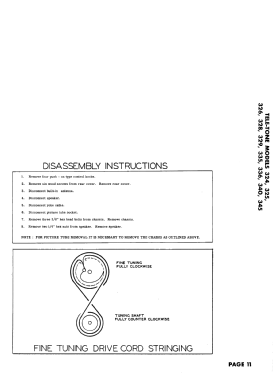

• Photofact Folder, Howard W. SAMS (Set 127 Folder 12 dated 3-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
