• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 346016

• • alternative name: Teletone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6J6 or 12AT7 6AG5 6J6 6AG5 6AG5 6AG5 6BC5 or 6CB6 6AU6 6BN6 or 6AL5 12SN7GT 25L6GT 12SN7GT 12SN7GT 25L6GT 12SN7GT 6BQ6GT or 25BQ6GT 25W4GT 1B3GT or 1X2GT 17RP4A or 16RP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TV345 Ch= TAP-2 - Tele-Tone Radio Corp., Tele-

• Shape
• Tablemodel, with any shape - general.

• Notes

• Tele-Tone model TV345 is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.
  Equipped with chassis TAP-2, VHF tuner TAS 551-D or TAS 540 .



• Literature/Schematics (1)

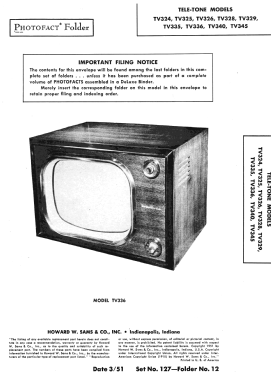

• Photofact Folder, Howard W. SAMS (Set 127 Folder 12 dated 3-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
