• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1948 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 149831

• • alternative name: Teletone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6AU6 6AG5 6J6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6AL5 6AT6 25L6GT 6AU6 12SN7GT 12SN7GT 12SN7GT 12SN7GT 12SN7GT 1B3GT 25Z6GT 6X5GT 7JP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

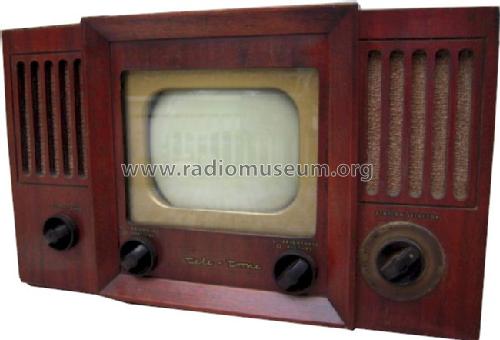

• Model: TV-149 - Tele-Tone Radio Corp., Tele-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18 x 11 x 17 inch / 457 x 279 x 432 mm

• Notes

• Tele-Tone TV-149;

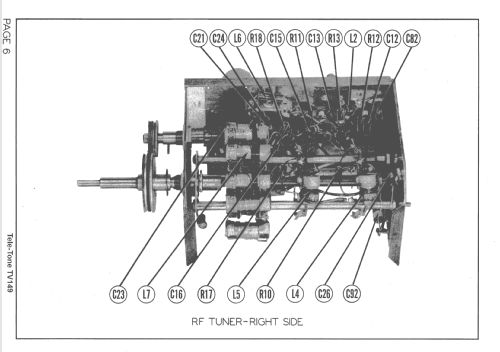

  ~7" round CRT B/W TV with US standard VHF turret tuner, local/distant antenna in.

  Channels 2 through 13

• Source of data
• Photofact Folder, Howard W. SAMS

• Mentioned in
• 494-22 Set 56 Folder 22

• Author
• Model page created by a member from A. See "Data change" for further contributors.
