- Country
- United States of America (USA)
- Manufacturer / Brand
- Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 244398
-
- alternative name: Teletone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6J6 6AG5 6J6 6AU6 6AU6 6AU6 6AL5 6AU6 6AU6 6AL5 6AT8 25L6GT 6AU6 12SN7GT 6SL7GT 6J5 6AL5 12SN7GT 12SN7GT 25L6GT 1B3GT 7JP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.8 inch = 9.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: TV-170 - Tele-Tone Radio Corp., Tele-
- Shape
- Tablemodel, low profile (big size).
- Notes
-
TV-Receiver with 7" Picture Tube.
Channels 2 thru 13.
- Mentioned in

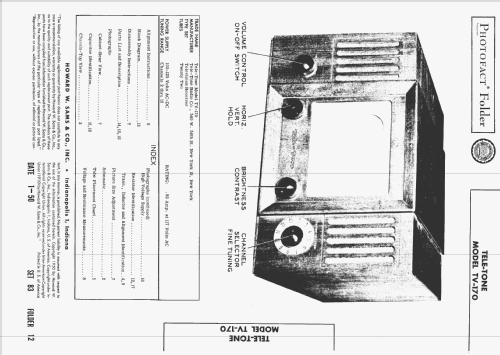

- Photofact Folder, Howard W. SAMS (Vol.9/50 Date 1-50 83-12 Set 83 Folder 12)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
