- Country
- United States of America (USA)
- Manufacturer / Brand
- Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
- Year
- 1949
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 149257
-
- alternative name: Teletone
Sams Photofact Folders
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6J6 6AG5 6J6 6AH6 6AH6 6AL5 6J8 6AU6 6T8 6K6GT 6SN7GT 6SN7GT 6SN7GT 6BG6G 6W4GT 1B3GT 10BP4
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- from Radiomuseum.org
- Model: TV-254 - Tele-Tone Radio Corp., Tele-
- Shape
- Tablemodel, low profile (big size).
- Notes
- 4" x 6" PM elliptical speaker
Picture tube: 10BP4
Tuning Range: TV - Channels 2 thru 13.
- Literature/Schematics (1)

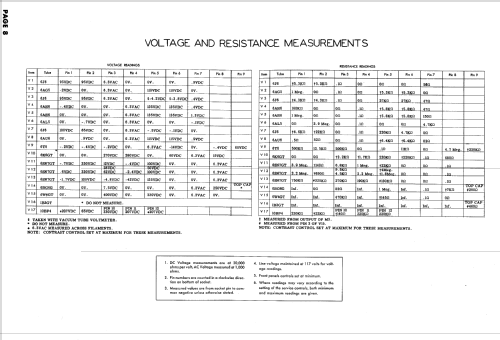

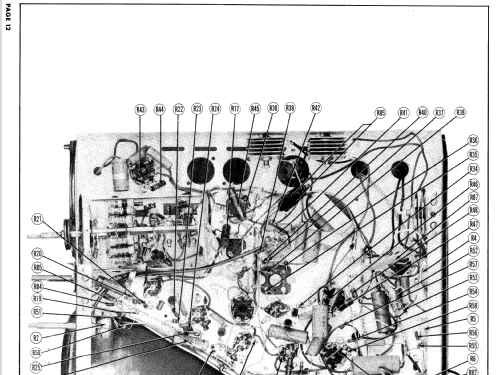

- Photofact Folder, Howard W. SAMS (Date 4-50, Set 91, Folder 13)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
