- Country
- United States of America (USA)
- Manufacturer / Brand
- Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 132130
-
- alternative name: Teletone
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 24
- Valves / Tubes
- 16AP4
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: TV-285 - Tele-Tone Radio Corp., Tele-
- Shape
- Tablemodel, with any shape - general.
- Notes

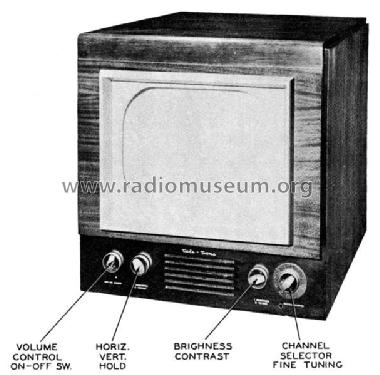

- Tele-Tone TV-285; ~10" round CRT b/w TV with US standard VHF tuner. Mahogany cabinet.
4" x 6" PM elliptical speaker.
Tuning Range: TV - Channels 2 thru 13.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-50, Set 87, Folder 13)
