TV-287 22 tubes

• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1950 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 247238

• • alternative name: Teletone

• Picture

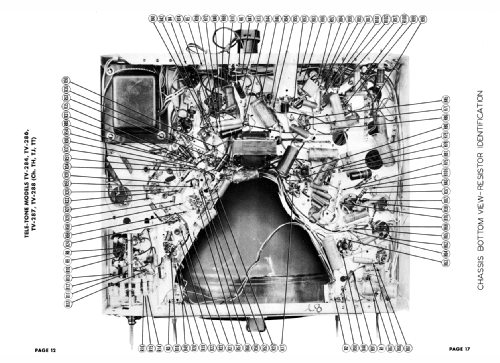

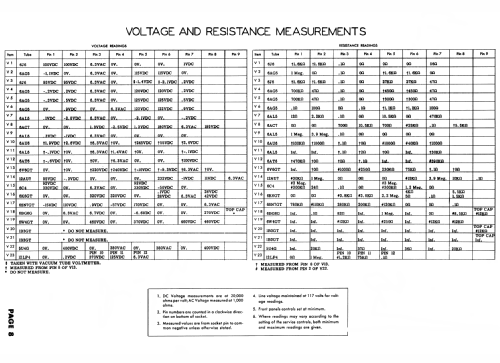

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• 6J6 6AG5 6J6 6AG5 6AG5 6AG5 6AL5 6AC7 6AL5 6AU6 6AL5 6AT6 6V6GT 12AU7 6C4 6K6GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 12LP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: TV-287 [22 tubes] - Tele-Tone Radio Corp., Tele-

• Notes

• Television Receiver, tuning range = channels 2 thru 13. Picture Tube = 12LP4.

• Mentioned in

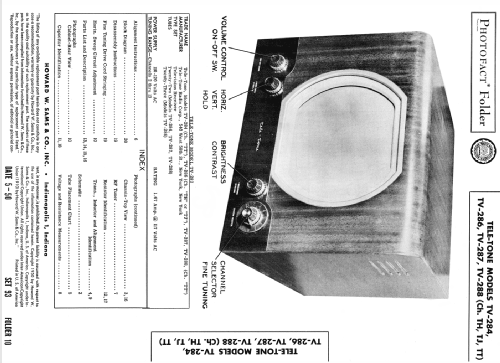

• Photofact Folder, Howard W. SAMS (Set 93 Folder 10 Date 5-50)

• Author
• Model page created by Geert Schulte. See "Data change" for further contributors.
