• Country
• United States of America (USA)

• Manufacturer / Brand
• Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 63234

• • alternative name: Teletone

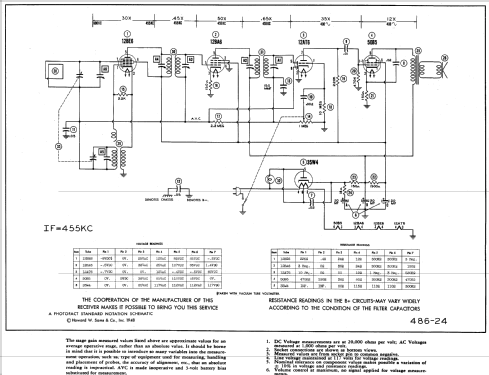

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

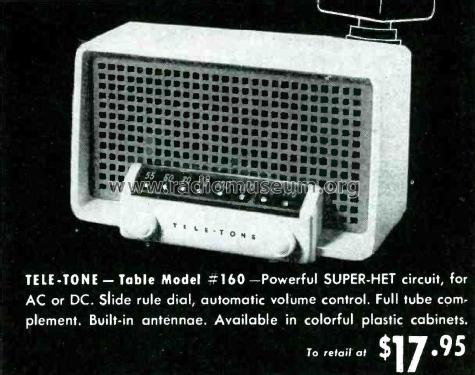

• Model: 160 Ch= Y - Tele-Tone Radio Corp., Tele-

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Built in loop antenna.

• Price in first year of sale
• 17.95 USD

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 3-48, Set 36, Folder 486-24)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (October, 1947, page 27)

• Other Models

• Here you find 168 models, 77 with images and 128 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Tele-Tone Radio Corp., Tele-Tone Co. Inc.; New York (NY)
