Musalarm 8H59

Telechron, Inc.; Ashland (MA)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Telechron, Inc.; Ashland (MA)

Year
1948

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
63169

Schematics

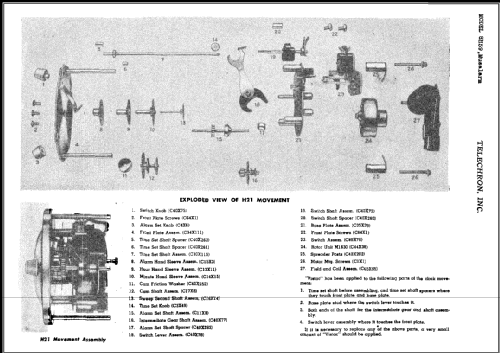

Musalarm 8H59 ; Telechron, Inc.; (ID = 444544) Radio — Telechron, Inc.; Musalarm 8H59 (3)

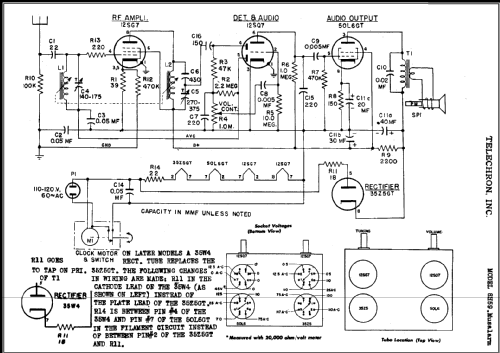

Musalarm 8H59 ; Telechron, Inc.; (ID = 444545) Radio — Telechron, Inc.; Musalarm 8H59 (3)

Musalarm 8H59 ; Telechron, Inc.; (ID = 444546) Radio — Telechron, Inc.; Musalarm 8H59 (3)

Musalarm 8H59 ; Telechron, Inc.; (ID = 444547) Radio — Telechron, Inc.; Musalarm 8H59 (3)

Musalarm 8H59 ; Telechron, Inc.; (ID = 3043741) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 277230) Radio — Telechron, Inc.; Musalarm 8H59 (1)
SV2BBO

Musalarm 8H59 ; Telechron, Inc.; (ID = 277232) Radio — Telechron, Inc.; Musalarm 8H59 (1)
SV2BBO

Musalarm 8H59 ; Telechron, Inc.; (ID = 366445) Radio — Telechron, Inc.; Musalarm 8H59 (2)
Picture courtesy of eBay seller chinobob

Musalarm 8H59 ; Telechron, Inc.; (ID = 277231) Radio — Telechron, Inc.; Musalarm 8H59 (1)
SV2BBO

Musalarm 8H59 ; Telechron, Inc.; (ID = 276098) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 276100) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 366446) Radio — Telechron, Inc.; Musalarm 8H59 (2)
Picture courtesy of eBay seller chinobob

Musalarm 8H59 ; Telechron, Inc.; (ID = 366447) Radio — Telechron, Inc.; Musalarm 8H59 (2)
Picture courtesy of eBay seller chinobob

Musalarm 8H59 ; Telechron, Inc.; (ID = 366449) Radio — Telechron, Inc.; Musalarm 8H59 (2)
Picture courtesy of eBay seller chinobob

Musalarm 8H59 ; Telechron, Inc.; (ID = 804208) Radio — Telechron, Inc.; Musalarm 8H59 (1)
White model. My own collection

Musalarm 8H59 ; Telechron, Inc.; (ID = 841302) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 841304) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 841305) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 841307) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 841309) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 2112996) Radio — Telechron, Inc.; Musalarm 8H59 (1)

Musalarm 8H59 ; Telechron, Inc.; (ID = 2928018) Radio — Telechron, Inc.; Musalarm 8H59 (1)
RECONSTRUCTED LABEL

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
4

Valves / Tubes
12SG7 12SQ7 50L6GT 35Z5GT 35W4

Main principle
TRF without regeneration

Tuned circuits
2 AM circuit(s)

Wave bands
Broadcast only (MW).

Power type and voltage
Alternating Current supply (AC) / 117 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

Power out
2.2 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Musalarm 8H59 - Telechron, Inc.; Ashland MA

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
10.6 x 5.8 x 4.8 inch / 269 x 147 x 122 mm

Notes
AC only for the clock motor! On later models a 35W4 rectifier tube replaced the 35Z5GT.

External source of data
Ernst Erb

Source of data
The Radio Collector's Directory and Price Guide 1921 - 1965

Circuit diagram reference
Rider's Perpetual, Volume 16 = ca. 1948 and before
