• Country
• Switzerland

• Manufacturer / Brand
• Teleconsa - Telecon AG; Zürich

• Year
• 1970

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 219918

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Transceiver; ZF/IF 10700/455 kHz; 3 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage and/or dry batteries / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

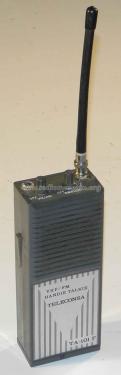

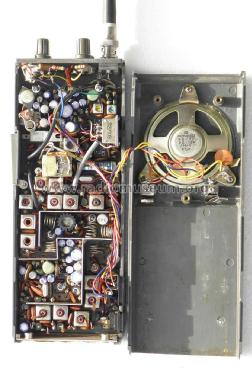

• Model: VHF/FM Handie Talkie TA-101F - Teleconsa - Telecon AG; Zürich

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 81 x 218 x 45 mm / 3.2 x 8.6 x 1.8 inch

• Notes

• Handfunksprechgerät, 1 oder 2 Kanäle im Bereich 134 bis 174 MHz (Steckquarze), Frequenzmodulation. Sendeleistung 1 W, NF-Leistung 0,3 W.
  Zwei unterschiedliche Gehäuseausführungen bekannt.
  Hergestellt von Seiki Electronics Inc., Japan.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original-techn. papers. (Instruktion Manual for VHF/FM Handie Talkie Model TA-101F)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
