• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62550

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH41 UAF41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Baleares 1054 - Telefunken Radiotécnica

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 200 x 230 x 130 mm / 7.9 x 9.1 x 5.1 inch

• Notes
• Baleares 1054 hat einen Drehko Marke PINEDA. Das MW-Band geht bis 1800 m (Onda Pesquera) also inkl. Fischereiband. KW von 15 bis 50 m.

• Price in first year of sale
• 1,375.00 pts.

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Literature/Schematics (1)

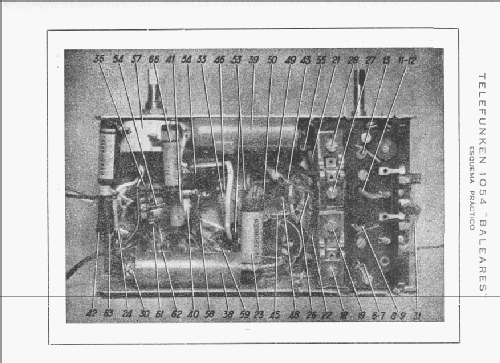

• -- Original-techn. papers.
