239V

• Country
• Hungary

• Manufacturer / Brand
• Telefunken; Budapest

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82958

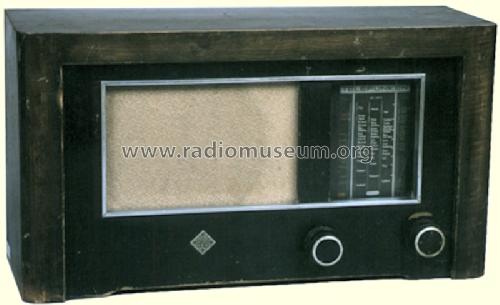

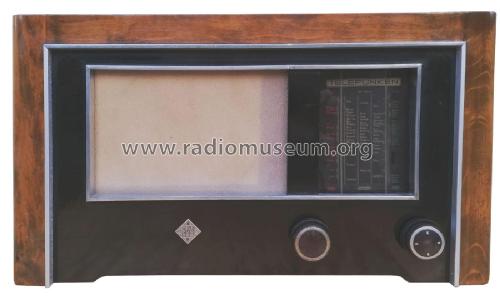

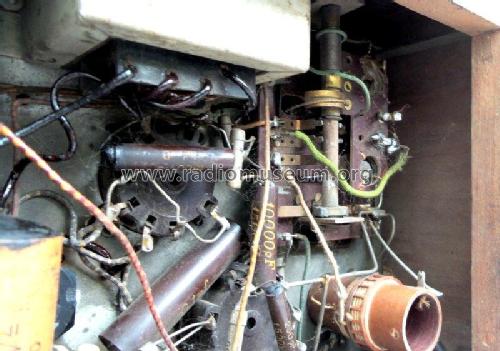

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF6 EL3 AZ1

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 24 cm = 9.4 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 239V - Telefunken; Budapest

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 325 x 215 mm / 22.8 x 12.8 x 8.5 inch

• Price in first year of sale
• 193.00 pengö

• External source of data
• Ungarische Schaltungssammlung

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Literature/Schematics (1)
• Telefunken 1939.

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.

• Other Models

• Here you find 92 models, 87 with images and 68 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken; Budapest
