• Country
• Hungary

• Manufacturer / Brand
• Telefunken; Budapest

• Year
• 1942/1943

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83074

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EBF2 ECL11 AZ1 EM4

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Material
• Wooden case

• from Radiomuseum.org

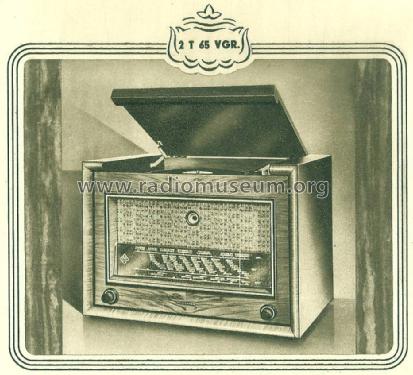

• Model: 2T65VGR - Telefunken; Budapest

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 590.00 Pengö

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Literature/Schematics (4)
• Telefunken katalógus 1942-43.

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
