- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1931/1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 68443
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); ZF/IF 2 kHz; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Direct Current supply (DC) / 110; 150; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

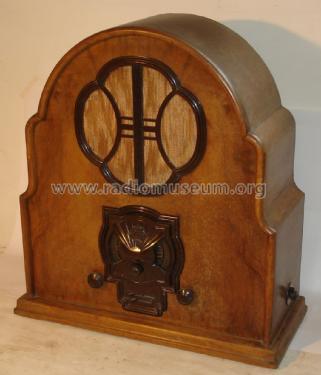

- Model: 340GL [Dyn] - Telefunken Deutschland TFK,
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Dimensions (WHD)
- 500 x 570 x 250 mm / 19.7 x 22.4 x 9.8 inch
- Notes

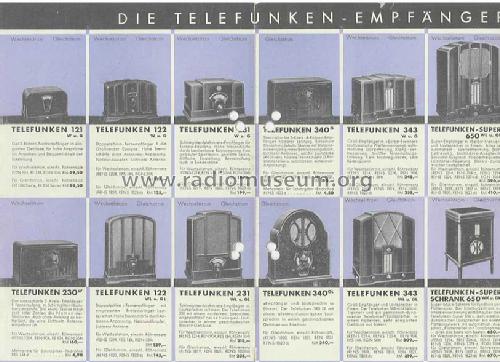

- «Katzenkopf» - äusserlich in der Ausführung wie 341WL. Siehe Abverkaufs-Prospekt Telefunken 1932 mit Preis 240 RM. Gem. Katalog Prohaska, Herbst/Winter 1931 [317] gibt es das "gleiche Modell" auch mit Aussehen des 340WL mit Mag.LS.
Laut Schenk-Regelien soll der T340G dem Siemens 46G entsprechen. Lange Nowisch zeigt das gleiche Schaltbild für beide Geräte. Beides ist falsch! Sowohl der Katalog (Prohaska 1931/32) als auch das Telefunken-Werkstattbuch als auch alle hier bekannten Geräte weisen die Bestückung RENS1820 REN1821 REN1821 RENS1823d auf. Regelien unterlag dem Irrtum (Siemens 46G) 1946/47 und Lange-Nowisch übernahm ihn 1952. Das falsche zweite Schaltbild ist aus Lange-Nowisch. Wir zeigen es, weil es die irreführende Überschrift trägt.
- Net weight (2.2 lb = 1 kg)
- 13.8 kg / 30 lb 6.3 oz (30.396 lb)
- Price in first year of sale
- 240.00 RM !
