- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1932/1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4474
Télefunken 345WL

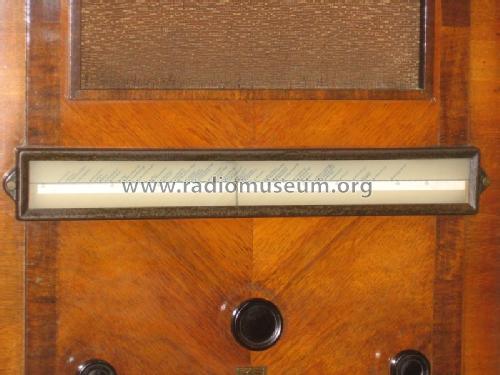

Détail cadran avant restauration
- Number of Tubes
- 5
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 345 - Telefunken Deutschland TFK,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 425 x 475 x 255 mm / 16.7 x 18.7 x 10 inch
- Notes
-
Paralleltype zum Siemens 46aWL.
Chassis identisch mit Telefunken 343WL.
- Net weight (2.2 lb = 1 kg)
- 13.8 kg / 30 lb 6.3 oz (30.396 lb)
- Source of data
- Radiokatalog Band 1, Ernst Erb
