564GWLK (T564GWLK)

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4362

• Picture

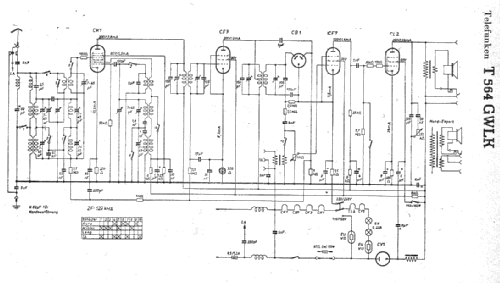

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CK1 CF3 CB1 CF7 CL2 CY1 EUVII or EUIX

• Main principle
• Superheterodyne (common); ZF/IF 129 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 564GWLK - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 625 x 350 x 320 mm / 24.6 x 13.8 x 12.6 inch

• Notes
• Feldst.Anz.

• Price in first year of sale
• 384.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
