• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273943

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ACH1 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 140; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

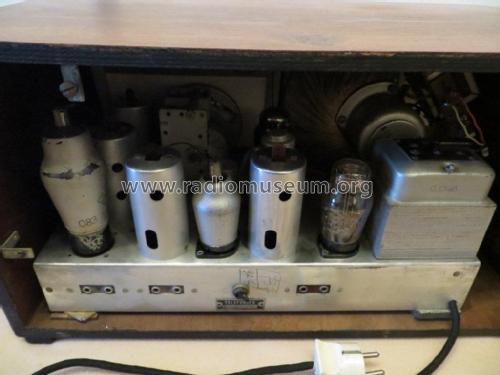

• Model: 567WK - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 270 x 255 mm / 19.3 x 10.6 x 10 inch

• Notes

• Telefunken Exportfertigung Benelux (wohl Belgien), siehe auch Telefunken 567W ohne KW-Bereich.

• Price in first year of sale
• 1,980.00 BEF

• Mentioned in
• Telefunken Katalog Serie 1938 (Belgien)

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref. 3356)

• Literature/Schematics (2)
• -- Schematic (OTO-Schaltungen)

• Author
• Model page created by Philipp Mittelstaedt. See "Data change" for further contributors.
