- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4327
eigene ebay-auktion
Annonce aus Rundfunkprogramm 21.11.1936
Aus "Mein Funk"1936
Q: Telefunken, Produkt-Katalog 1936/37

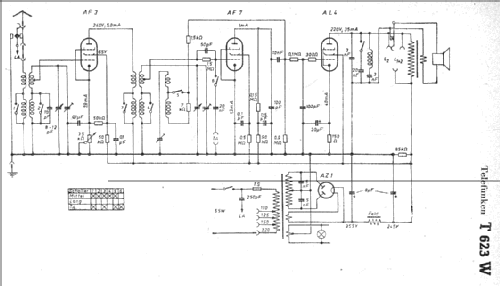

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF with regeneration; 1 Special; 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 150, 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 623W - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 565 x 300 x 308 mm / 22.2 x 11.8 x 12.1 inch
- Notes
-
Parallelgerät zum Siemens Standard 63W in anderem Gehäuse.
Parallelgerät zum AEG 3-26 -326WL.
- Net weight (2.2 lb = 1 kg)
- 13.8 kg / 30 lb 6.3 oz (30.396 lb)
- Price in first year of sale
- 225.00 RM
- Source of data
- HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
