- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167847
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; Export model
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- from Radiomuseum.org

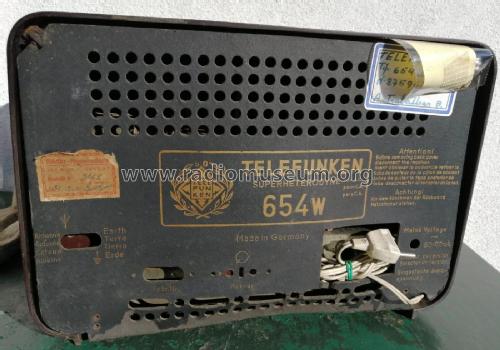

- Model: 654W - Telefunken Deutschland TFK,
- Notes
-
KW 16,2 - 50,8 m; MW 515 - 1620 kHz; LW 150 - 375 kHz.
Parallelgerät zum AEG Super 133W.
- Source of data
- -- Schematic
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
