• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99018

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• RENS1214 RENS1204 REN904 RENS1214 REN924 RENS1374d RGN1054

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 105; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 754 [early] - Telefunken Italia, Milano

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 460 x 510 x 310 mm / 18.1 x 20.1 x 12.2 inch

• Notes

• Scala parlante con indice puntiforme mobile. Stesso chassis dei modelli Telefunken 757-RF, Ariosto, Dante-RF.

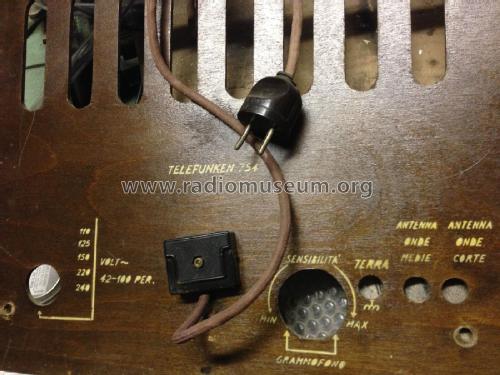

  Antenna fittizia realizzata con il collegamento della rete elettrica di alimentazione alla presa di antenna dell'apparecchio tramite un condensatore di isolamento.
  Controllo di tono. Ingresso Pick-Up. Indicatore ottico di sintonia.

• Price in first year of sale
• 1,695.00 LIT

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
