• Year
  • 1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 104381

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105; 125; 160; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

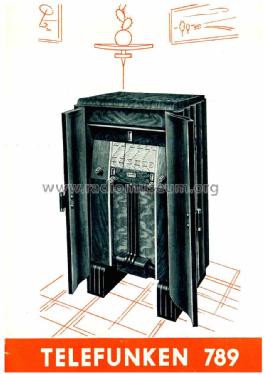

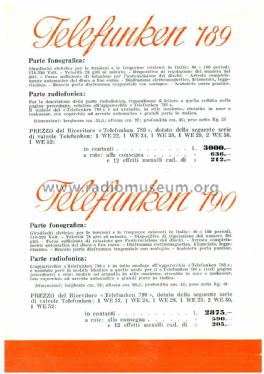

  • Model: 789 - Telefunken Italia, Milano
  • Shape
  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 550 x 970 x 460 mm / 21.7 x 38.2 x 18.1 inch
  • Notes
  • Indicatore di sintonia a proiezione d'ombra. Controllo di tono.

  • Literature/Schematics (2)
  • -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
