- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30764
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Valves / Tubes
- WE43 or ACH1C WE33 or AF3 WE37 or ABC1 WE39 or AC2 WE38 or AL4 WE38 or AL4 WE53 or AZ4
- Main principle
- Superheterodyne (common); ZF/IF 469 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

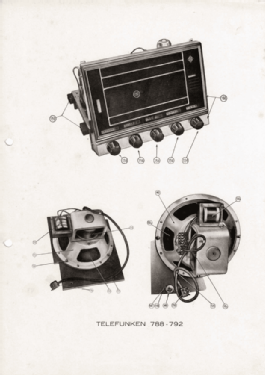

- Model: 792 - Telefunken Italia, Milano
- Shape
- Console: Chairside Radio.
- Notes
-
Indicatore ottico di sintonia.
Controllo di tono sull'ingresso del giradischi.
- Price in first year of sale
- 3,600.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Literature/Schematics (1)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
- Literature/Schematics (2)
- Il Radio Libro, (Ravalico) 6a edizione 1942
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
