Seducción AC1753
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62542

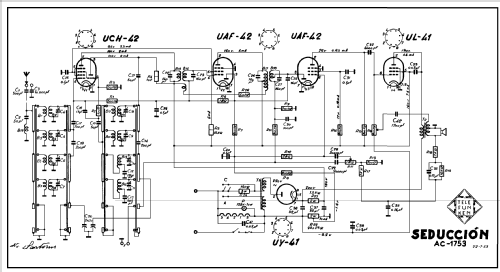

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 inch = 41.9 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Seducción AC1753 - Telefunken Radiotécnica
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 370 x 280 x 200 mm / 14.6 x 11 x 7.9 inch
- Notes
- Alimentación por autotransformador. Autotransformer in AC mains mode. Tres bandas OC. Three SW bands.
- Price in first year of sale
- 2,595.00 Pts.
- External source of data
- Ernst Erb
- Source of data
- Radio Historia y Técnica, J.J.E.
- Literature/Schematics (1)
- -- Original-techn. papers.
