• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1970 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 290029

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• AF121 AF121 AF126 AF126 AF126 AF126 AF126 2N4291 AC128 BC148 AC125 AC128 AD142 AD142 AA119 BA102 BZX29 1N457

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (max.)

• Material
• Metal case

• from Radiomuseum.org

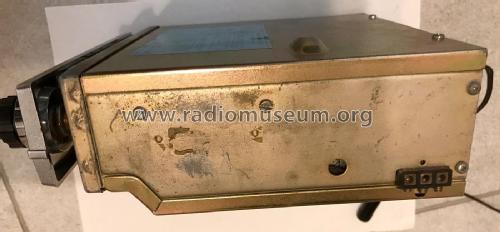

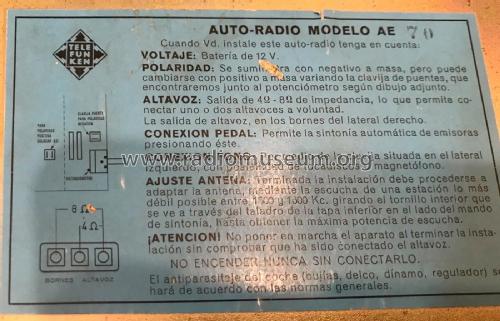

• Model: AE-70 - Telefunken Radiotécnica

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 186 x 182 x 65 mm / 7.3 x 7.2 x 2.6 inch

• Notes

• AM: 515 - 1.620 kHz.
  OL: 153 - 300 kHz.
  FM: 85 - 107 MHz.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

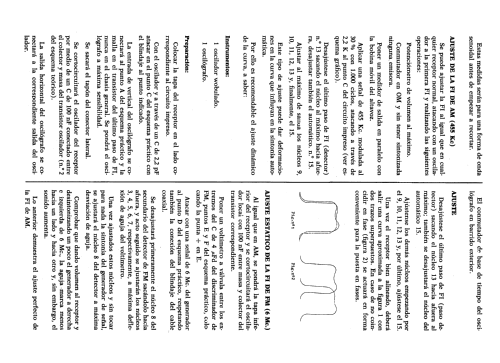

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
