• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1953

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 160409

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF85 ECH42 ECH42 EAF42 EAF42 EAF42 ECL11 STV150/15 Te30

• Main principle
• Superhet, double/triple conversion; ZF/IF 950/70 kHz; 2 AF stage(s)

• Tuned circuits
• 16 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 90; 110; 127; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

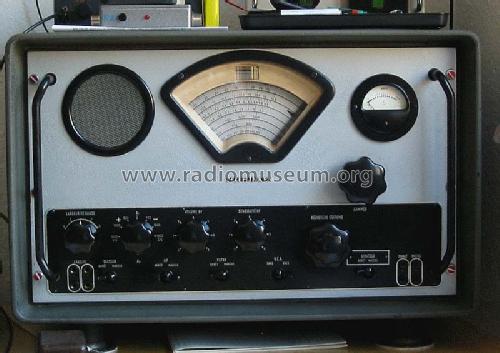

• Model: Allwellenempfänger E103Aw/5 - Telefunken Deutschland TFK,

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 570 x 350 x 380 mm / 22.4 x 13.8 x 15 inch

• Notes

• 103 - 30400 kHz in sieben Bereichen, Spulenrevolver, AM/CW mit BFO, fünf ZF-Bandbreiten plus NF CW-Filter, schaltbarer Störbegrenzer. Einfachsuperhet unterhalb 1370 kHz, dann 14 Kreise. Siehe auch E103Aw/3, E103Aw/4.

  Verwendung bei Seefunk, Behörden & Sicherheitsdiensten; auch Export (insbesondere Frankreich). Später oft in Amateurfunkstellen.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Source of data
• - - Manufacturers Literature
