• Year
  • 1953/1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 95573

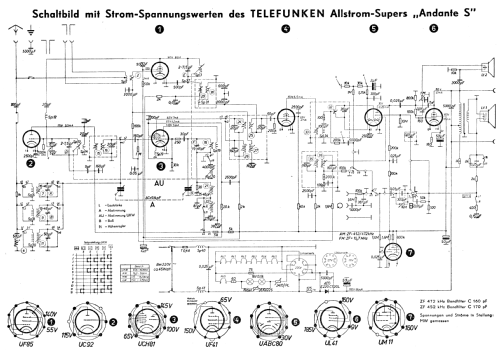

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

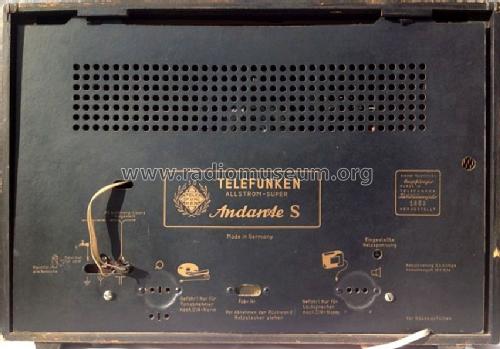

  • Model: Andante S [GW] - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 605 x 415 x 270 mm / 23.8 x 16.3 x 10.6 inch
  • Net weight (2.2 lb = 1 kg)
  • 11.3 kg / 24 lb 14.2 oz (24.89 lb)
  • Price in first year of sale
  • 404.00 DM
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
