Arcolette 31W (T31W)

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1929–1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4535

• Picture

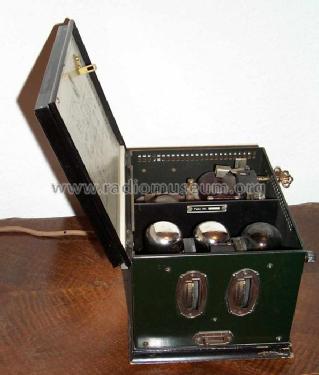

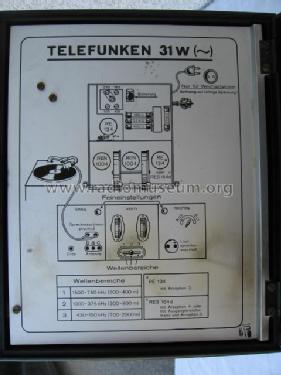

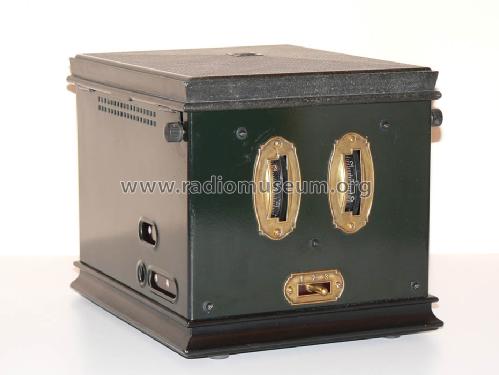

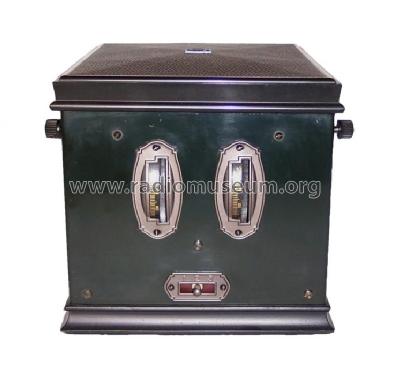

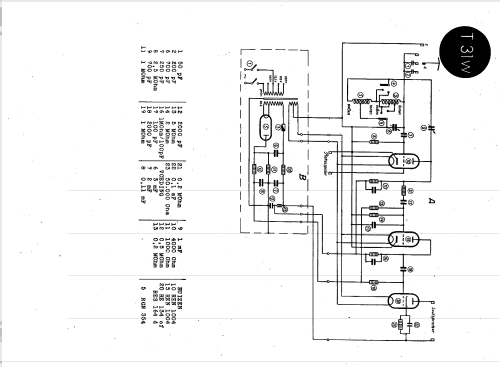

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• REN1004 REN1004 RE134 or RES164d RGN354

• Main principle
• TRF with regeneration; 2 AF stage(s)

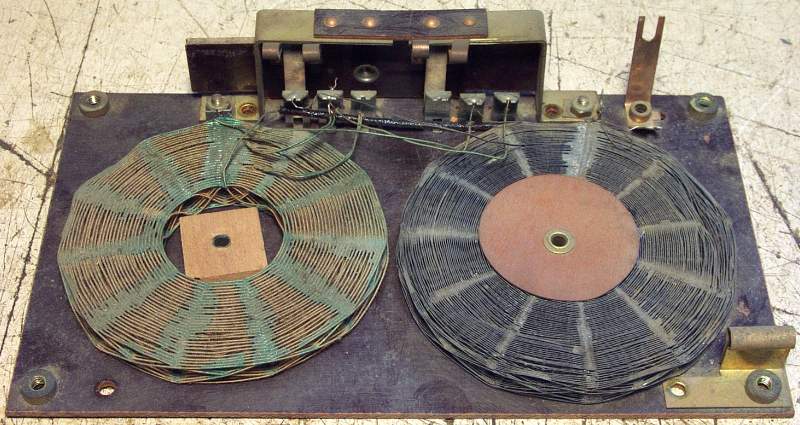

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105; 125; 150; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Arcolette 31W - Telefunken Deutschland TFK,

• Dimensions (WHD)
• 240 x 200 x 190 mm / 9.4 x 7.9 x 7.5 inch

• Notes

• Aufpreis RES164d: 8,50 RM

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Price in first year of sale
• 194.00 RM

• Source of data
• Kat.Radio Arlt 1931 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen
