• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1928 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116131

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RE054 RE054 RE134 or RE154

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

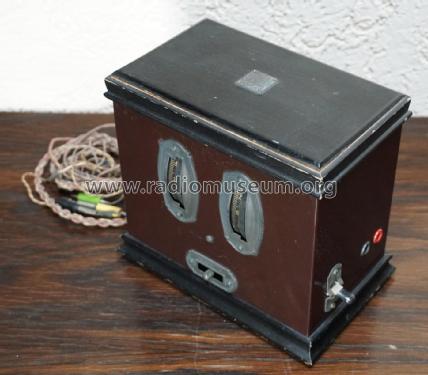

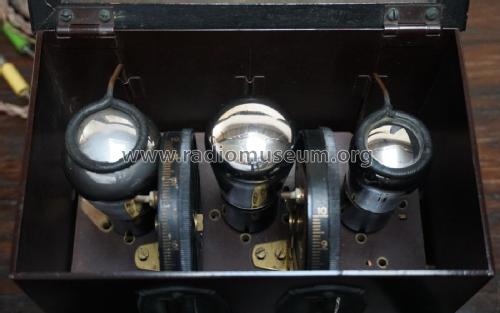

• Model: Arcolette 3 [var.4] - Telefunken Deutschland TFK,

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 200 x 190 x 140 mm / 7.9 x 7.5 x 5.5 inch

• Notes
• Phonoeingang.
  Diehr nennt nur RE154, Arlt nur RE134.
  "frequenzgerade Kondensatoren".
  Ersatzbestückung später meist RE034.
  Bei 2 V-Betrieb RE052 RE052 RE152 oder RE352.

• Price in first year of sale
• 65.00 RM

• Source of data
• Arlt's grosser Radiokatalog 1930

• Mentioned in
• Radio-Diehr, Berlin, 1928/1929

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
