B744GWK

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4151

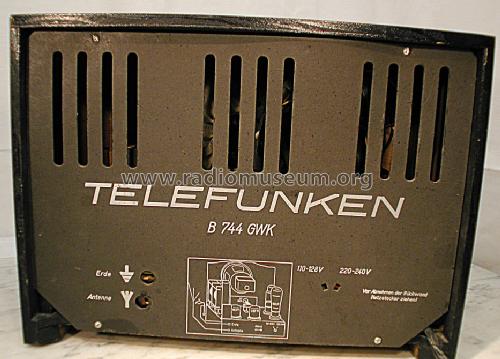

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 UY11

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: B744GWK - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 387 x 277 x 187 mm / 15.2 x 10.9 x 7.4 inch

• Notes
• B (Bayern) bei Geräten aus Dachau

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 475.00 RM

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + Schenk Nr. 30 von 1948

• Mentioned in
• Funk-Technik (FT) (4813)

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"
