• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 109588

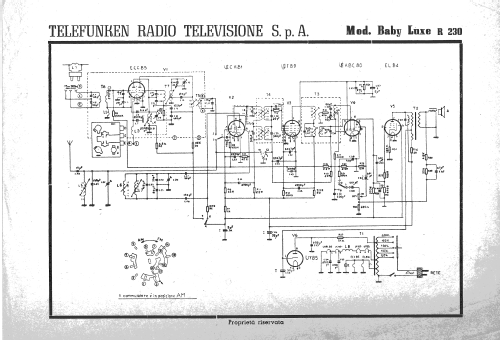

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 UCH81 UF89 UABC80 EL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material

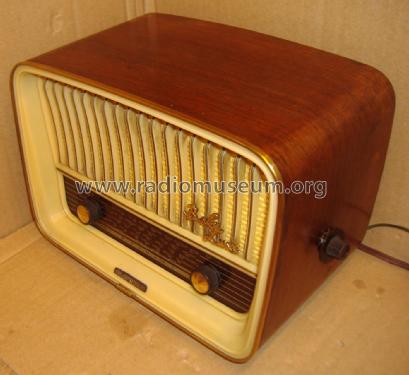

• Wooden case

• from Radiomuseum.org

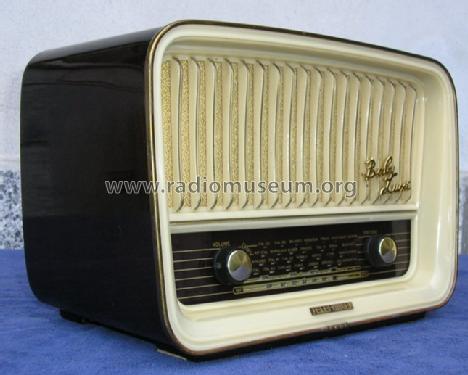

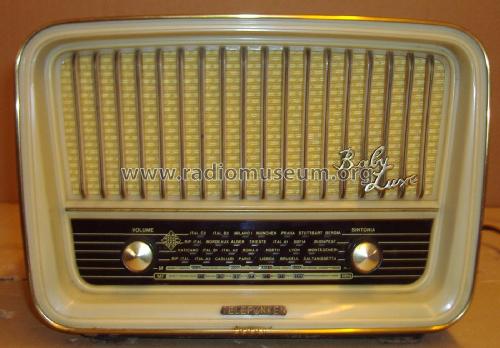

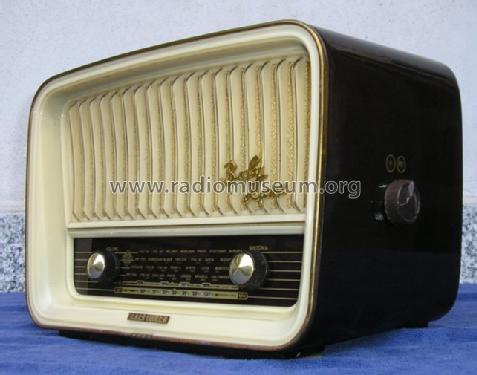

• Model: Baby Luxe R230 - Telefunken Italia, Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 180 x 155 mm / 10.2 x 7.1 x 6.1 inch

• Price in first year of sale
• 29,900.00 LIT

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 288 models, 242 with images and 201 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
