• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 83436

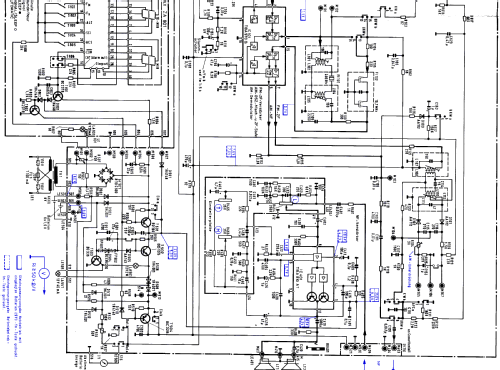

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player; Power: Charger for A-Batteries

• Power type and voltage
• Line / Batteries (any type) / 110; 220; (6 × 1,5) Volt

• Loudspeaker
• 2 Loudspeakers / Ø 16 cm = 6.3 inch

• Power out
• 12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Bajazzo CR6000 Digital - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 450 x 250 x 110 mm / 17.7 x 9.8 x 4.3 inch

• Notes
• 4 Ic, 24 Dioden, 5 Z-Dioden
  Ausgangsleistung Batt 1,5W
  5 UKW-Stationstasten; AFC; Abstimm-/Batterie-Anzeige; CC-Kassetten-Rekorder; Fe/ CrO2/ FeCr, Mikrofon, TB/TA-Buchse, digitale Quarz-Uhr mit Weck-/Sleep-Automatik.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 500.00 DM

• Author
• Model page created by Sieghart Brodka † 24.2.17. See "Data change" for further contributors.
