• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159779

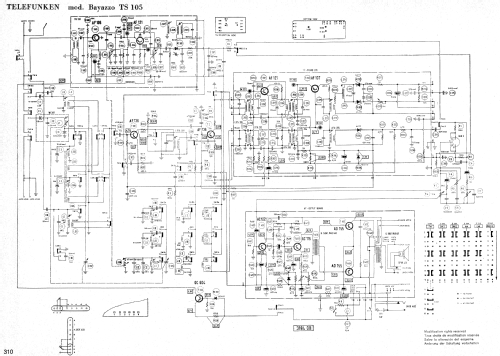

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF178 AF121 AF136 AF121 AF137 AC122 AC116 AC117 AC117 AA112 AA112 AA112

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

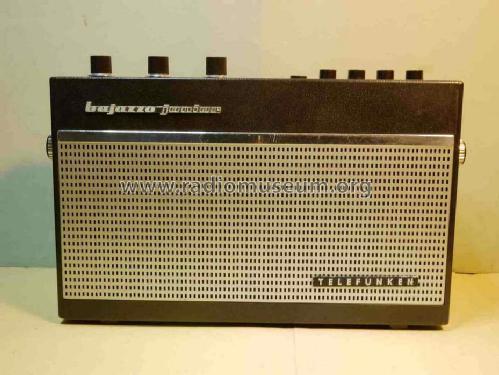

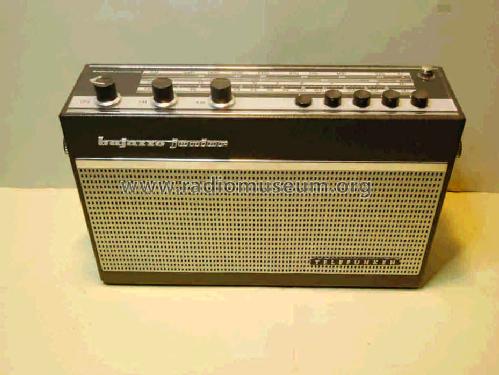

• Model: Bajazzo Junior 105 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Selen-stabilizer st76,1 AEG

• Source of data
• -- Schematic

• Author
• Model page created by Júlio Branco. See "Data change" for further contributors.
