banjo automatic 205

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1969/1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3928

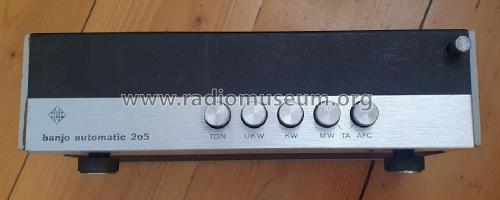

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

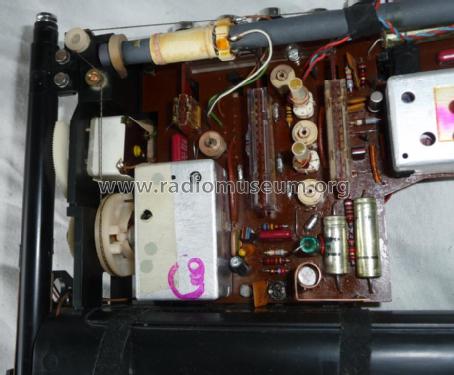

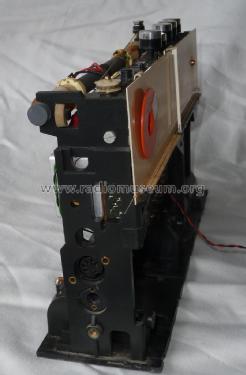

• Number of Transistors
• 5

• Semiconductors
• AF106 AF121 AF121 AF136 AF137 TAA300

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: banjo automatic 205 - Telefunken Deutschland TFK,

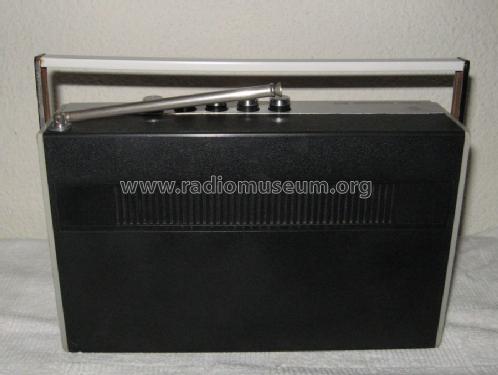

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 150 x 75 mm / 9.8 x 5.9 x 3 inch

• Notes
• Netzbetrieb mit zusätzlichem Netzteil möglich. Aufpreis DM 30.-

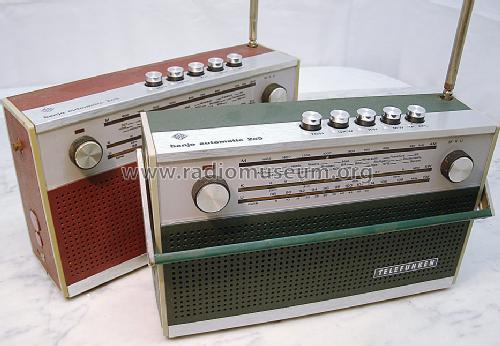

  Gehäusevarianten: rot, schwarz, weiss und moosgrün

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Price in first year of sale
• 165.00 DM

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 1, Ernst Erb
