• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 152040

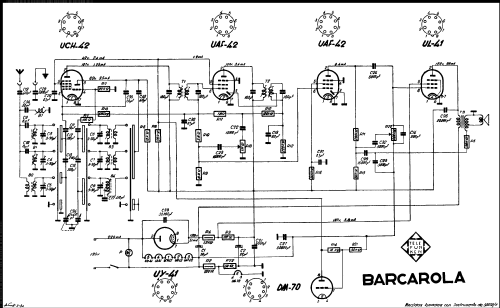

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 DM70 UY41

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Barcarola U-1476 - Telefunken Radiotécnica

• Notes

• Piloto de 125V 10W

  Existen bastantes diferencias entre los dos esquemas, llevan fechas diferentes, centradas todas ellas en el circuito del ojo mágico.

  All changes between both schematics are around the magic eye circuit.

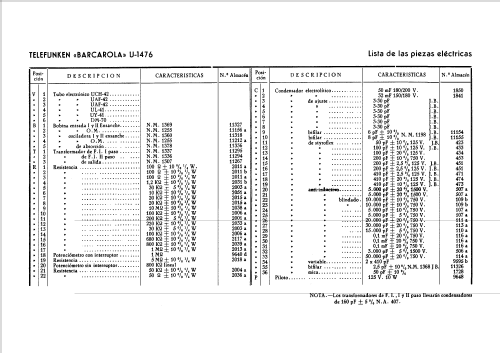

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
