• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1933–1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4396

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• RENS1834 RENS1824 RENS1834 REN1826 RENS1823d EUIV

• Main principle
• Superhet with RF-stage; ZF/IF 132 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details

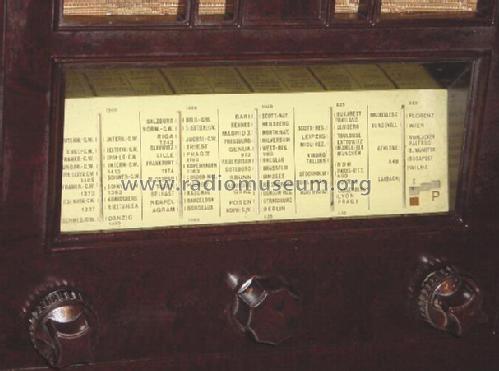

• Visual Tuning Indicator pre Eye

• Power type and voltage
• Direct Current supply (DC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

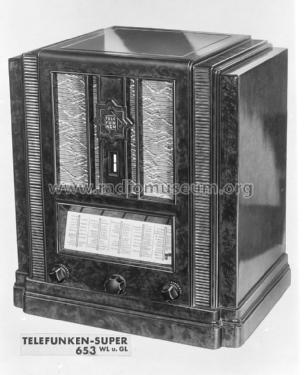

• Model: Bayreuth 653GL - Telefunken Deutschland TFK,

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 440 x 460 x 300 mm / 17.3 x 18.1 x 11.8 inch

• Notes

• Mit Schattenzeiger zur Abstimmung (Orthoskop).

  Paralleltype zum Siemens Ätherzepp-S 56GL in anderem Gehäuse.
  Paralleltype zum AEG Super-Geador 605GL in anderem Gehäuse.

• Price in first year of sale
• 376.00 RM !

• Source of data
• Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung
