• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94315

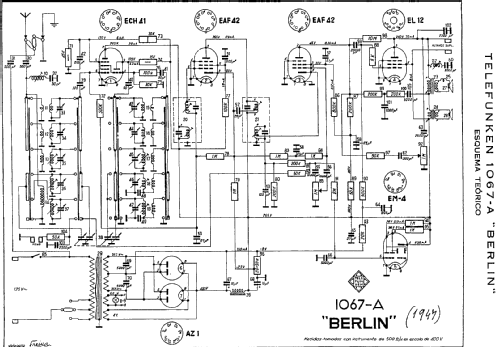

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH41 EAF42 EAF42 EL12 EM4 AZ1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Berlin 1067A - Telefunken Radiotécnica

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 400 x 270 mm / 21.3 x 15.7 x 10.6 inch

• Notes
• ¡Dos rectificadoras en paralelo!
  Two valve rectifier in parallel. 4 x OC. 4 x SW. Altavoz de 20 cm. electromagnético. Altavoz de 13 cm. dinámico. 8,5" loudspeaker electromagnetic. 5" loudspeaker dynamic.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
