• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24580

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL86 EM84 ECL86

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Berolina 2362 [poliert] - Telefunken Deutschland TFK,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 900 x 720 x 355 mm / 35.4 x 28.3 x 14 inch

• Notes
• Rundfunk-Chassis = 2360;

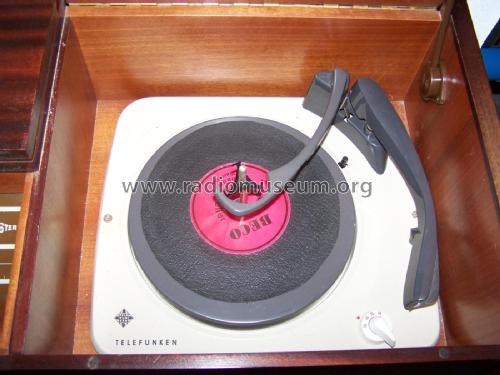

  Phono-Chassis = TW504.

• Net weight (2.2 lb = 1 kg)
• 28 kg / 61 lb 10.8 oz (61.674 lb)

• Price in first year of sale
• 878.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963
