Caprice 7041W

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 87816

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

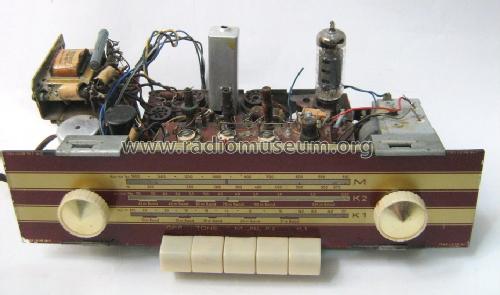

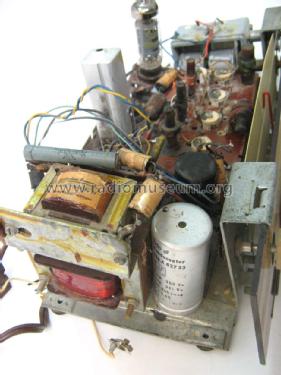

• Number of Tubes
• 4

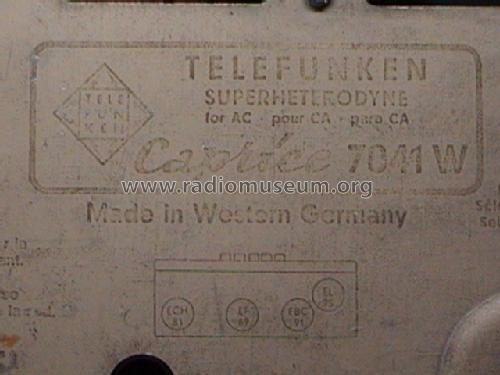

• Valves / Tubes
• ECH81 EF89 EBC91 EL95

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Export model

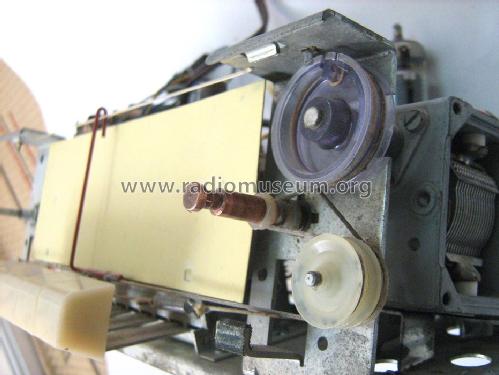

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

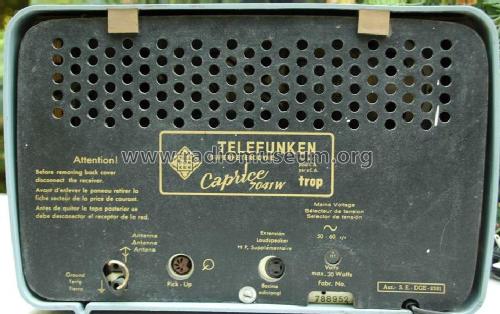

• Power type and voltage
• Alternating Current supply (AC) / 100; 118; 150; 200; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Caprice 7041W - Telefunken Deutschland TFK,

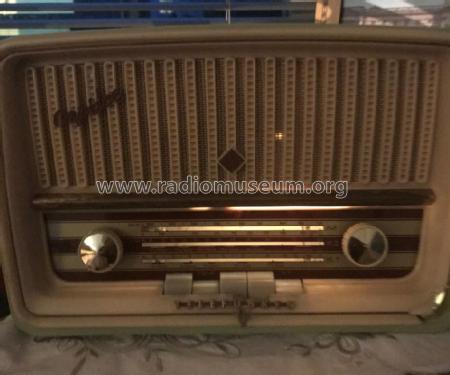

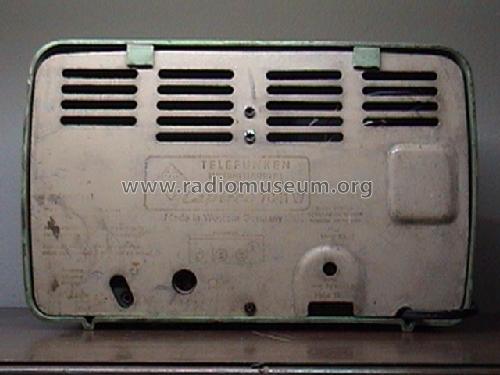

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 330 x 220 x 180 mm / 13 x 8.7 x 7.1 inch

• Notes

• Telefunken Caprice 7041W is an export model.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Gonzalo Moncada-Jimenez. See "Data change" for further contributors.
