• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80185

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• HCH81 HF93 HBC91 HL94 HY90

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Bakelite case

• from Radiomuseum.org

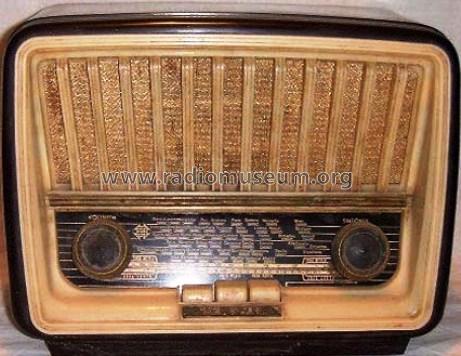

• Model: Capricho U-1815 - Telefunken Radiotécnica

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 270 x 190 x 160 mm / 10.6 x 7.5 x 6.3 inch

• Notes
• OM 540...1820 kHz
  OC 16,5...55,6 m.

• Literature/Schematics (1)
• -- Original-techn. papers. (Esquema_Schematic)

• Author
• Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
