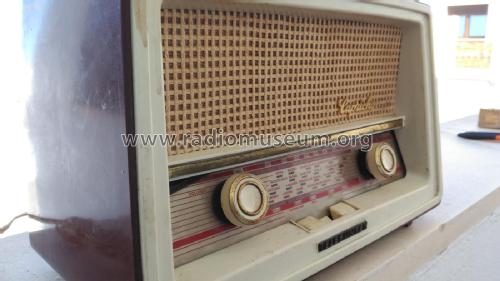

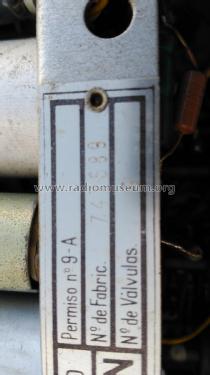

Capricho U2225
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 125853
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Capricho U2225 - Telefunken Radiotécnica
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 270 x 155 x 125 mm / 10.6 x 6.1 x 4.9 inch
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
- Other Models
-
Here you find 372 models, 296 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Telefunken Radiotécnica Ibérica; Getafe
Collections
The model Capricho is part of the collections of the following members.
Forum contributions about this model: Telefunken: Capricho U2225
Threads: 1 | Posts: 3
Quisiera informar a los miembros de org.sobre el esquema de esta radio Capricho U2225(similar al Panchito 58U1715:
Para que trabaje el oscilador local,la resistencia de reja de la válvula HCH81,que está en serie con el condensador de 50 pF,TIENE QUE TENER EL VALOR DE 68 OHMIOS ,y no de 50K como figura,posiblemente por error en el esquema.
Juan Alvarez Alonso, 29.Dec.12
