Carabela FE-123 /23 Ta

• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 194905

• Picture

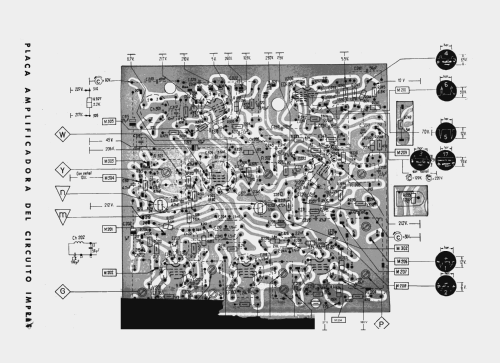

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC88 PCF80 EF183 EF80 EF80 PCL84 ECH84 EF80 PCL86 ECH81 EAA91 PCL82 PCF82 PL36 PY88 DY86 AW59-90

• Number of Transistors

• Semiconductors
• OA150 OA160 OA161 OA172 OA180 E220C5 E220C450

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 125; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Carabela FE-123 /23 Ta - Telefunken Radiotécnica

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Telefunken Radiotécnica Ibérica, S.A.,  FE-123 /23 Ta

  TV B/N con selector rotativo de VHF y TRC de 23"e

• Price in first year of sale
• 22,900.00 ESP

• Mentioned in
• Anuncio La Vanguardia Española octubre 1962

• Literature/Schematics (1)
• -- Original-techn. papers. (Esquemario TV REDE, Tomo II, 1964)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
