• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1944/1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74468

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH11 UBF11 UCL11 UY11

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-160 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

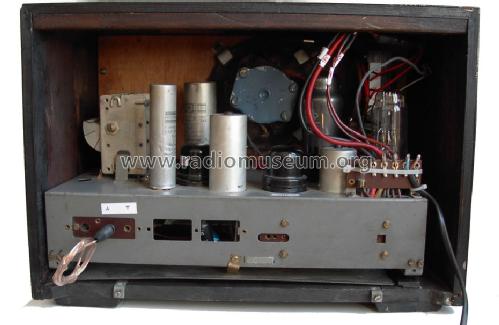

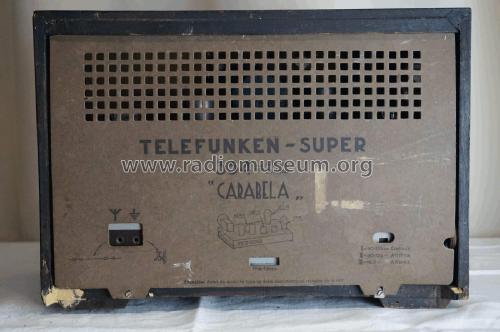

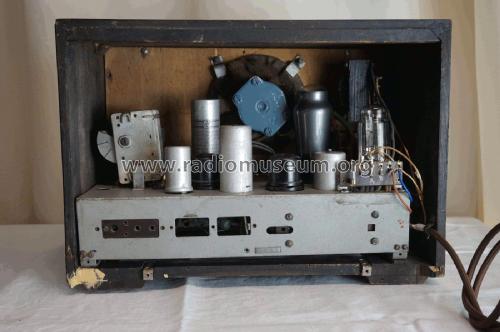

• Model: Carabela 354 A-C - Telefunken Radiotécnica

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 280 x 225 mm / 15.4 x 11 x 8.9 inch

• Notes
• The circuit is basically identical with German Telefunken 154GWK. The Spanish set has contimous (pot) tone control and only one SW band. Instead of absorption resistors, the Spanish set has an auto transformer to operate between specified voltage ranges.

  El precio en sus primeros anuncios, Noviembre y Diciembre de 1943, era de 1800 pts. En Enero de 1944 apareció con un precio de 1556,25 pesetas, al igual que en los anuncios de 1945.

• Price in first year of sale
• 1,800.00 ESP

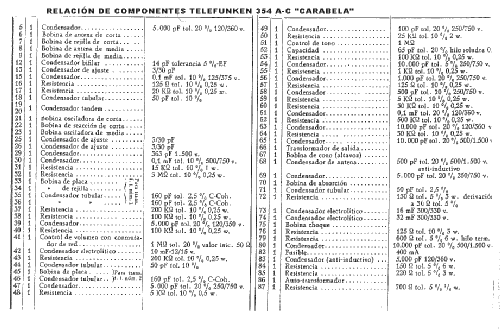

• Literature/Schematics (1)
