• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1960–1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23867

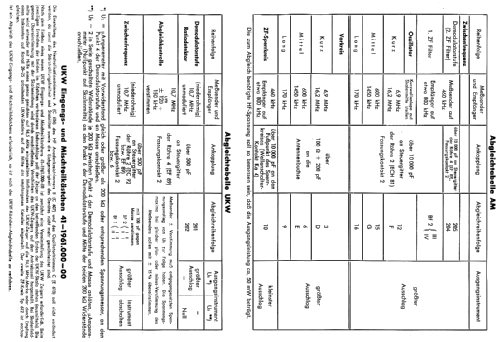

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM84 EABC80 ECC83 ECL86 ECL86

• Number of Transistors

• Semiconductors
• B250C150 OA180

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220, 240 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Concertino 2194 [hell matt] - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 375 x 270 mm / 25.2 x 14.8 x 10.6 inch

• Notes

• Stereo-NF-Verstärker, 7-W-Gegentakt-Endstufe in Zweiwegtechnik.
  AFC wird aktiv beim Loslassen des Abstimmknopfes.

  Parallelgerät zum AEG Tambour 61.

• Net weight (2.2 lb = 1 kg)
• 14.3 kg / 31 lb 8 oz (31.498 lb)

• Price in first year of sale
• 468.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 3561 models, 3144 with images and 2111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
