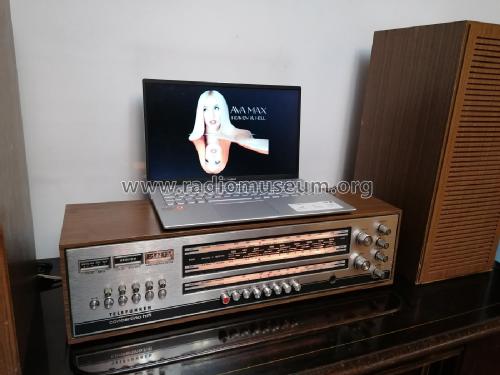

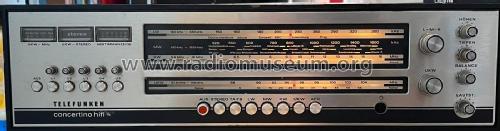

Concertino HiFi 201V

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27985

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors
• BD142 BD142 BD142 BD142

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (44 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Concertino HiFi 201V - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 620 x 170 x 190 mm / 24.4 x 6.7 x 7.5 inch

• Notes

• HiFi-Stereo-Steuerger 201V
  NF-Verstärker mit 2 Endstufen je 15 W (Sinus).
  Gehäuse: Nussbaum-Dekor oder weiss.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971

• Literature/Schematics (1)
• -- Original-techn. papers.
