• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1975–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88171

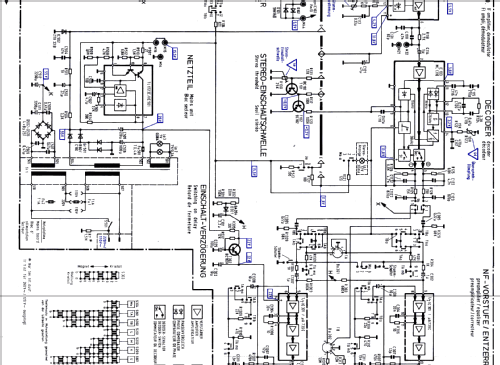

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (90 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Concerto HiFi 4530 - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 540 x 120 x 280 mm / 21.3 x 4.7 x 11 inch

• Notes
• ICs: 6.
  Stereo-Steuergerät. Ausgangsleistung: 2× 30 W (Sinus). Eingänge: TB, TA (umschaltbar Magnet/Kristall); 4 LS-Ausgänge.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 1977/78)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
