• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105022

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF41 EAF42 EL84 EM80 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

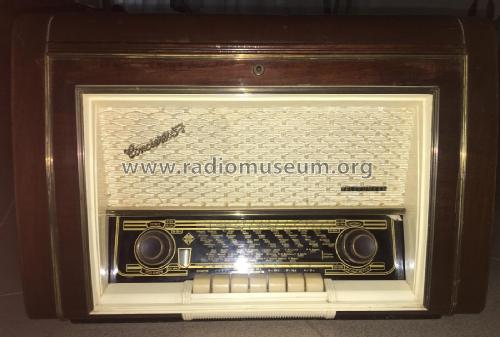

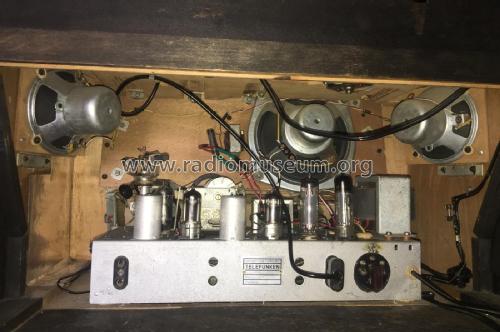

• Model: Concierto-57 3D AF-1696 FA-1696-3D - Telefunken Radiotécnica

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 450 x 360 x 330 mm / 17.7 x 14.2 x 13 inch

• Net weight (2.2 lb = 1 kg)
• 13.8 kg / 30 lb 6.3 oz (30.396 lb)

• Price in first year of sale
• 5,995.00 Ptas

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (4)
• Anuncio La Vanguardia Española octubre 1956

• Author
• Model page created by Jose Antonio Gonzalez-Ruiz. See "Data change" for further contributors.

• Other Models

• Here you find 372 models, 296 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Radiotécnica Ibérica; Getafe
